FEV reduces engine weight by 21%

Adam GavineBy Adam GavineJanuary 7, 20215 Mins Read
Share LinkedIn Twitter Facebook Email

Weight reduction is a priority for automotive engineers aiming to achieve optimal vehicle dynamics as well as lower CO2 emissions. With this in mind, FEV has collaborated with technical partners to develop the LeiMot (“Lightweight Engine”), a project undertaken to demonstrate how much potential internal combustion engines still have to offer. The partners found that the major components of a baseline diesel-powered passenger car can be made roughly 21% lighter through the use of additive manufacturing methods. At the same time, FEV’s engineers were able to increase the efficiency of engine functions such as cooling and oil circulation.

With a view to future emission and driving dynamics requirements, the aim is to further reduce vehicle mass and increase powertrain efficiency. Modern all-aluminium combustion engines have already reached a very low weight in this respect. Major leaps in development can probably only be accomplished with alternative manufacturing processes, finds FEV, which has highlighted their potential in the LeiMot research project.

The focus was on the cylinder heads and crankcase of a state-of-the-art, mass-produced two-litre diesel engine. Both parts were manufactured using a selective laser powder bed fusion (LPBF) process instead of die-cast aluminium as in the past.

“This allows components to be fabricated through additive manufacturing. That is, one layer at a time based on material in powder form,” explained Ralf Bey, LeiMot project manager at FEV. “In this specific instance, it was aluminium alloy AlSi10Mg, but we also considered fibre-reinforced plastics. The components produced using this method weigh around 21% less. At the same time, the new, installation-compatible engine parts – cylinder head and crankcase – increase the powertrain’s efficiency.”

Cylinder head loses mass but retains durability
The newly designed cylinder head alone saves 2.3kg, says FEV, or 22% of the weight compared to the original component. To accomplish this weight reduction, the engineers needed to reinforce certain areas, especially those subjected to high mechanical stress, because the combustion process primarily exerts bending loads, while the engine as a whole is subjected to torsional loads. The best ratio of weight reduction to rigidity is a combination of an I-beam (IPB) and an integrated, closed drawer.

“Thanks to additive manufacturing, we were able to produce the exhaust port with heat insulation, built-in using a 3-D printer,” stated Bey. “That not only heats up the exhaust after-treatment systems faster, but it also boosts the turbine inlet temperature, making the turbocharger more efficient.”

Crankcase reinvented
When considering the aspects of weight and rigidity of the crankcase, the decision was made to go with what is called a ‘short-skirt’ design with a bedplate of aluminium. Replacing the steel bearing caps with the bedplate was made possible by the reduced friction main bearing diameters of the diesel base engine. With the redesigned crankcase, including the bedplate, the weight was lowered by 5.1kg compared to the original components.

The bulkheads of the crankcase were given open, horizontal load structures reinforced by a cross-rib network in appropriate places. Additional strength is provided by two lightweight connecting tubes in the area of the balance shafts. Based on topology analyses, low-stress zones were optimised with lattice structures and hollow spaces.

The crankcase side covers now consist of fibreglass-reinforced phenolic resin, making them roughly 15% lighter.

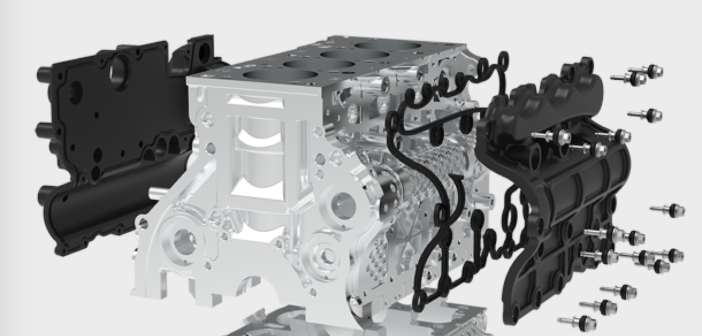

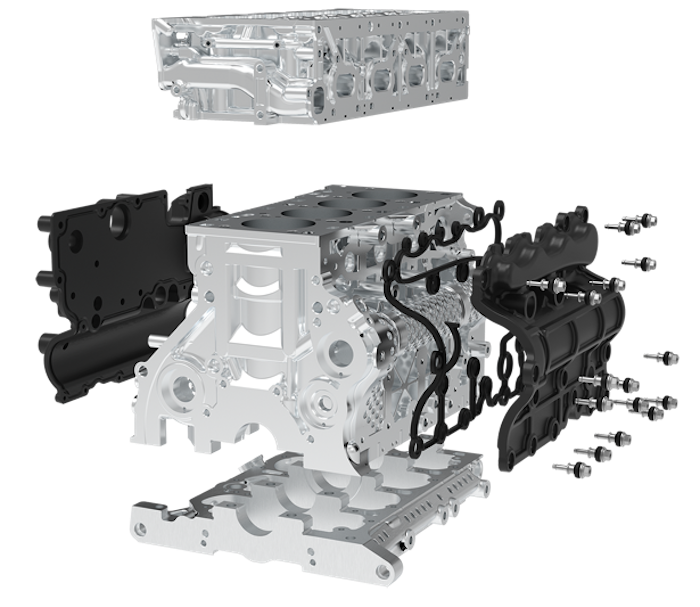

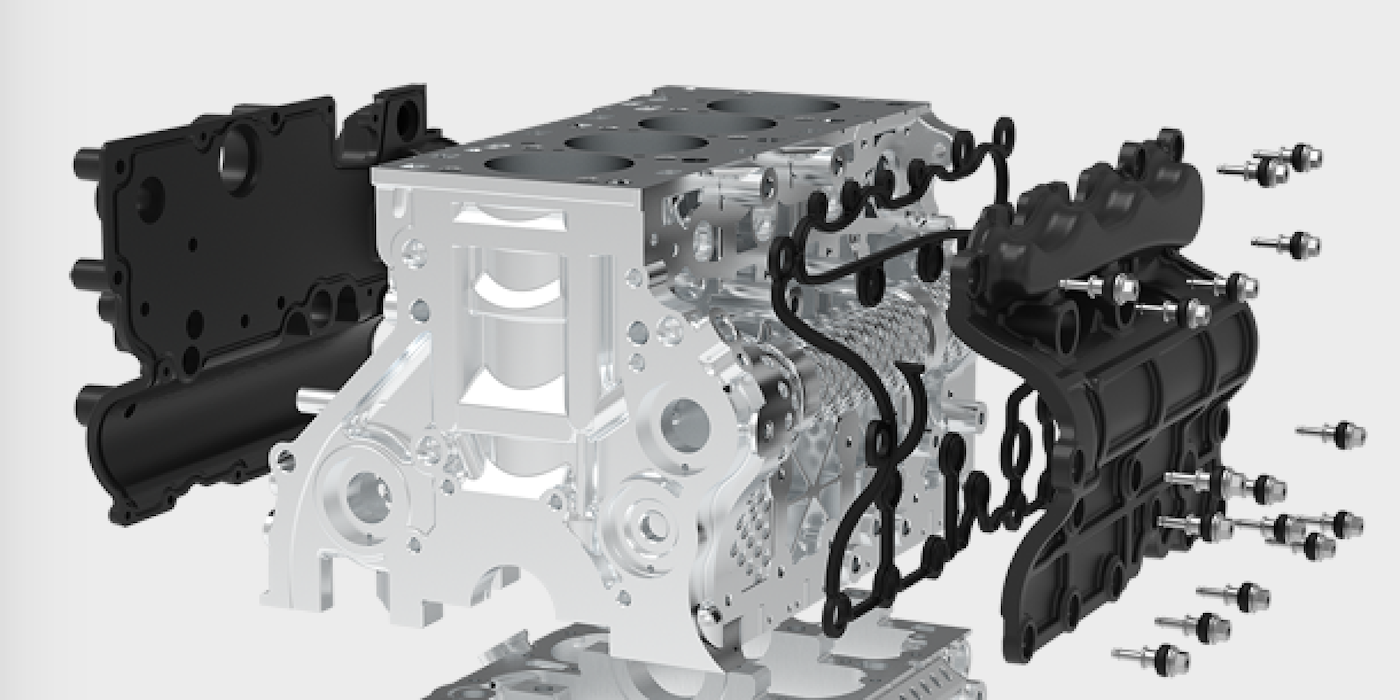

FEV’s LeiMot project shows how much potential internal combustion engines still offer: a 21% weight reduction thanks to additive manufacturing methods, and increased efficiency of engine functions

Less water enables greater cooling
The new cross-current cooling system enables the cylinders’ temperatures to be lowered, while at the same time reducing the amount of water needed. One main difference in the design is the individual cooling channels in the cylinder head, which replace the large-volume cooling jacket. They decrease the temperatures in the combustion chamber plate by as much as 40%. Despite using 40% less coolant, the temperatures of the walls were reduced significantly compared with the reference engine. As a result, both the warm-up phase after a cold start was shortened, and the power needed to run the water pump was lowered.

Advancements in oil circulation reduce pressure loss
Advancements in oil circulation lead to additional advantages during cold starts and in normal operation. The measures aimed at optimisation also include a new approach to route the related hoses, with gentle curves instead of sharp redirection, and changes in diameters. Altogether, the approach reduced the amount of pressure loss in the cylinder head and crankcase by 22%. A reversed siphon prevents oil from running off when standing still. This keeps the appropriate oil pressure for operating the valves available more quickly once the engine is started. Hollowed bulkheads provide for return oil circulation.

“Additive” teamwork
Germany’s Federal Ministry for Economy and Energy is funding the LeiMot research project. FEV is leading the dedicated consortium consisting of a renowned automobile manufacturer, research institutions, universities of applied sciences, engineering development service providers, equipment manufacturers, and automotive suppliers. Their common goal is to enable even conventional production methods to benefit increasingly from the opportunities afforded by additive manufacturing – far beyond the example of the LeiMot engine.
